Infant Phototherapy Unit (KS-LA-6P)
Tel:
0754-88481863Tel:
0754-88481863The principle of Phototherapy treatment for nconatal jaundiceBlue light irradiation(Phototherapy )is a simple, effective and quicktreatment for neonatal jaundice(hyperbilirubinemia ).
It's used to treat newborn jaundice by lowering the bilirubin levels inyour baby's blood through a process called photo-oxidation.
Photo-oxidation adds oxygen to the bilirubin so it dissolves easily inwater. This makes it easier for your baby's liver to break down andremove the bilirubin from their blood.

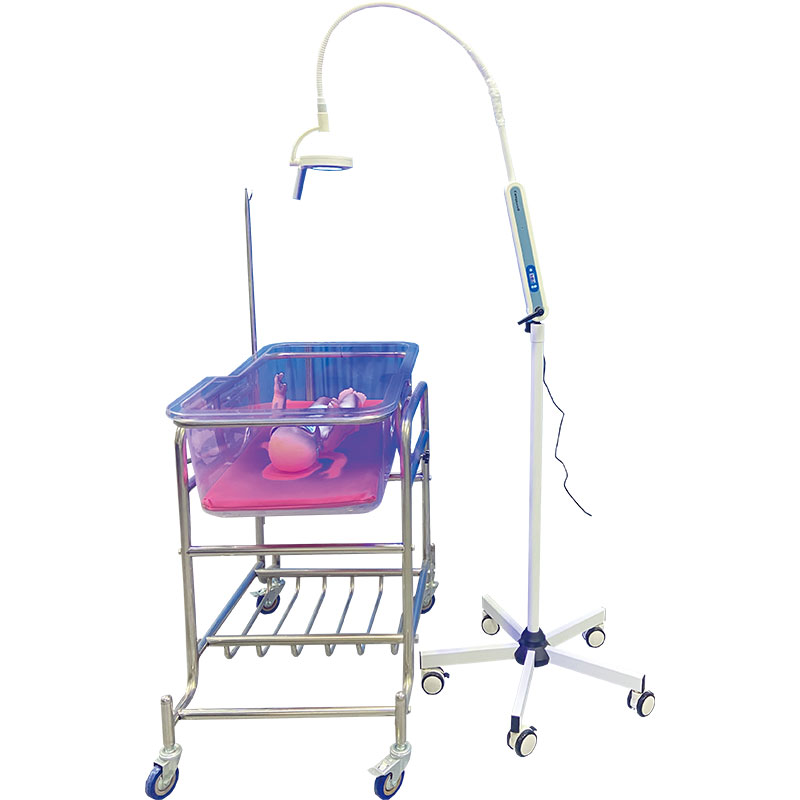

Standard mobile mounted with the most maneuverability

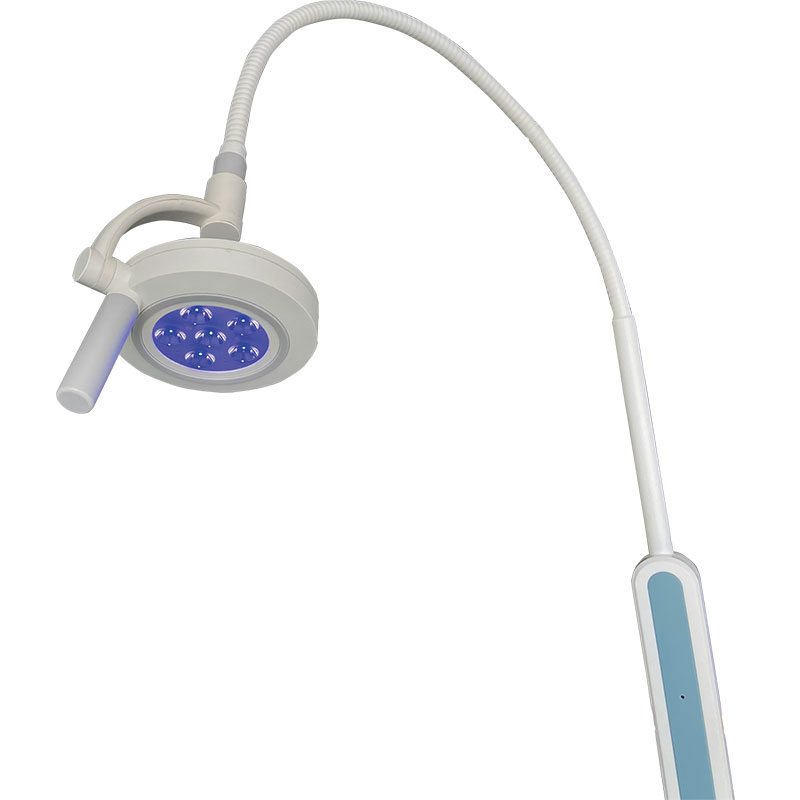

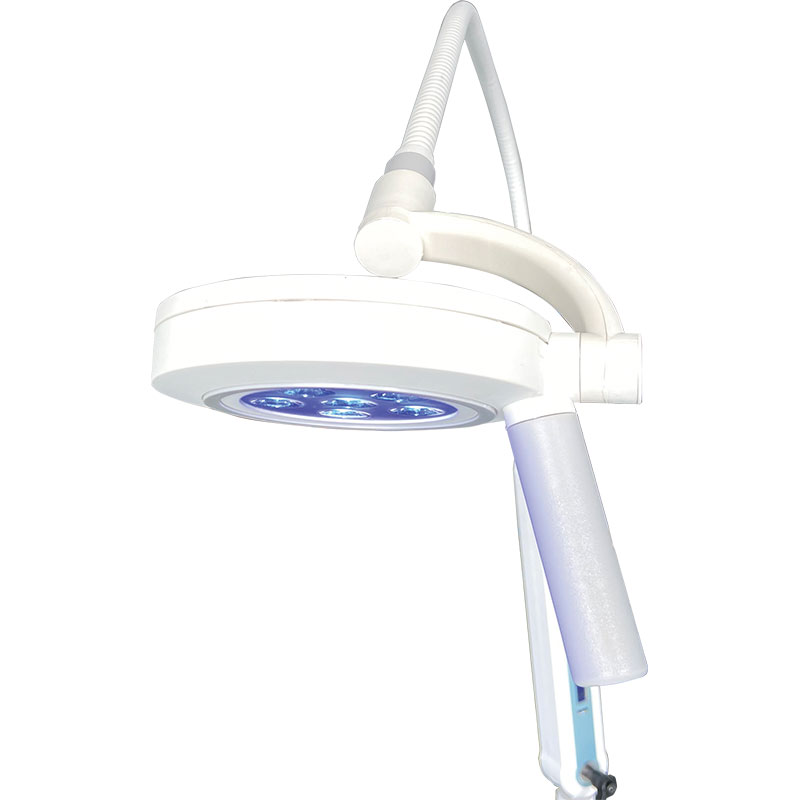

Irradiant light source has super height adjustment facility
Large Range swivel of irradiant light source in different angle
have an effective surface area at a distance of 35 to 50 cm from light source with uniformity ratio >0.40
high intensity blue LED with wavelength ranging between 455 nm to 465 nm is more effective
Low power consumption with efficient lighting, more durable quality
Light Dimming Facility for the irradiance instensity
Digital timer for therapy time control
It can also be used with many other medical devices such as Radiant warmer, Intensive care incubators.
It is compatible with most of the baby bassinets.
Models | KS-LA-6P |
Power supply | AC110V~240V 60/50HZ |
Input power | 16VA |
Radiant wavelength | 400nm-500nm |
Peak Wavelength | 452nm-455nm |
Phototherapy source adjust range | 1280-2300mm |
Phototherapy source rotation angle range | 0~330° |
LED lamp lifetime | 50000 hours |
LED lamp quantity | 6 PCS |
Time accuracy | 1min/12hours |
Count down time range | 10~60mins |
Recommended treatment distance | 875px |
Effective area | 210x210mm |
Irradiance Ratio | >0.4 |
Ebi max (maximum total irradiance for bilirubin) | 1100μW/cm2-2500μW/cm2 |
