Cold Light Source（ELS-100A）
Tel：
0754-88481863
3.5 inch LED touch-screen control system with LED light source
Built-in LED Cold Light Source 100 VA
For its good illumination and clear imagine, the cold light source is mainly used in endoscope& microscope clinical medical to supply light source.

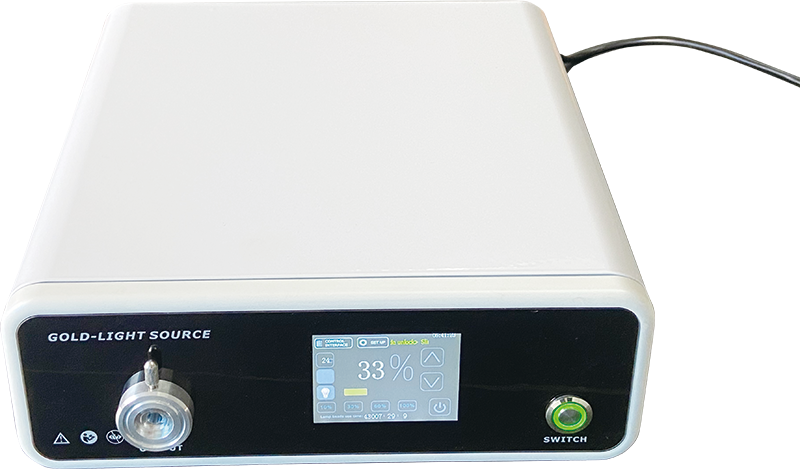

LED cold light source ELS-100A
| Technical Data of KS-ELS100A | |
| Light source | LED light source |
| Life span of LED | 20,000Hours |
| Input power | 100VA |
| Input Voltage | AC100-240V,50/60Hz |
| Color rendering index | >90 |
| Color Temperature | 5700-7000K |
| Illumination Intensity | >2,000,000 Lux |
| Brightness control | 0-100% brightness adjustment(3.5 inch touch screen) |
| Infrared cutoff | ≤6 mW/lm (300nm～1700nm) |
| φer (630nm'660nm)/φcg(515nm-545nm) | 0.75 |
| φeb (435nm'465nm)/φeg(515nm'545nm) | 1.45 |
| Illumination uniformity | 0.95 |
| Size of products | 300mm×310mm ×100mm |
| Weight of product | 4.4 kgs |
| Mechanical interface | φ10±0.1 mm |
| Adaptor | Wolf(standard),Storz(option) |
