0754-88481863LED phototherapy for neonatal jaundice
A unique device combines safe therapy, ultra long life of radiators, treatment effectiveness and economical operation. It emits intensive light radiation within
the spectrum of 440 – 470 nm to reduce bilirubin concentration in the neonatal body.

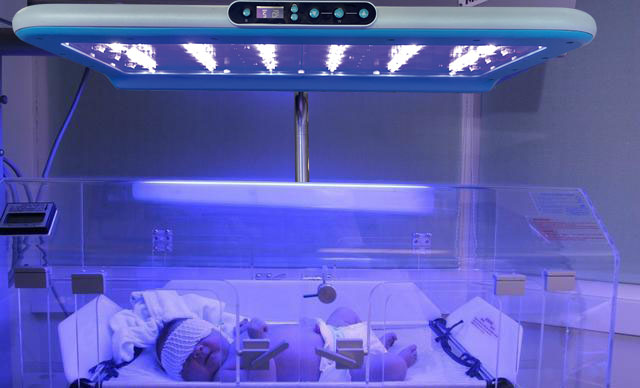

The phototherapy light can be placed directly on an incubatorhood. It has slip-resistant feet on the bottom that help to hold it in place.
The phototherapy light houses the 24 blue lights that provide therapy as well as 24 white lights used for observation or soften the blue light.
with trolley consists of the phototherapy light, an adjustable arm, and a rolling trolley that allows use above an incubator,radiant warmer, crib, or bassinet.
The trolley has four locking castors and a height-adjustable pole.
Long LED life and Blue LED Technology for Neonatal Jaundice Treatment
Low noise level and easy to maintain
White examination light allows correct identification of the infant’s skin colour
LED Display for Therapy Timer, Blue & White light separated intensive control
Use the lamp freely on an incubator or with a stand over an infant bed or a warmer
Height adjustable stand and flexible positioning of the radiator in all directions
Models | KS-IP48 |
Power supply | AC110V~240V 60/50HZ |
Input power | 80VA |
Radiant wavelength | 400nm-500nm |
Peak Wavelength | 452nm-455nm |
Phototherapy source adjust range | 1140~1690mm |
Phototherapy source rotation angle range | 0~360° |
LED lamp lifetime | 50000 hours |
LED lamp quantity | 48 PCS (24 blue/24 white) |
Time accuracy | 1min/12hours |
Count down time range | 10~60mins |
Recommended treatment distance | 35-1250px |
Effective area | 300x500mm |
Irradiance Ratio | >0.4 |
Ebi max (maximum total irradiance for bilirubin) | 2700μW/cm2-5100μW/cm2 |
