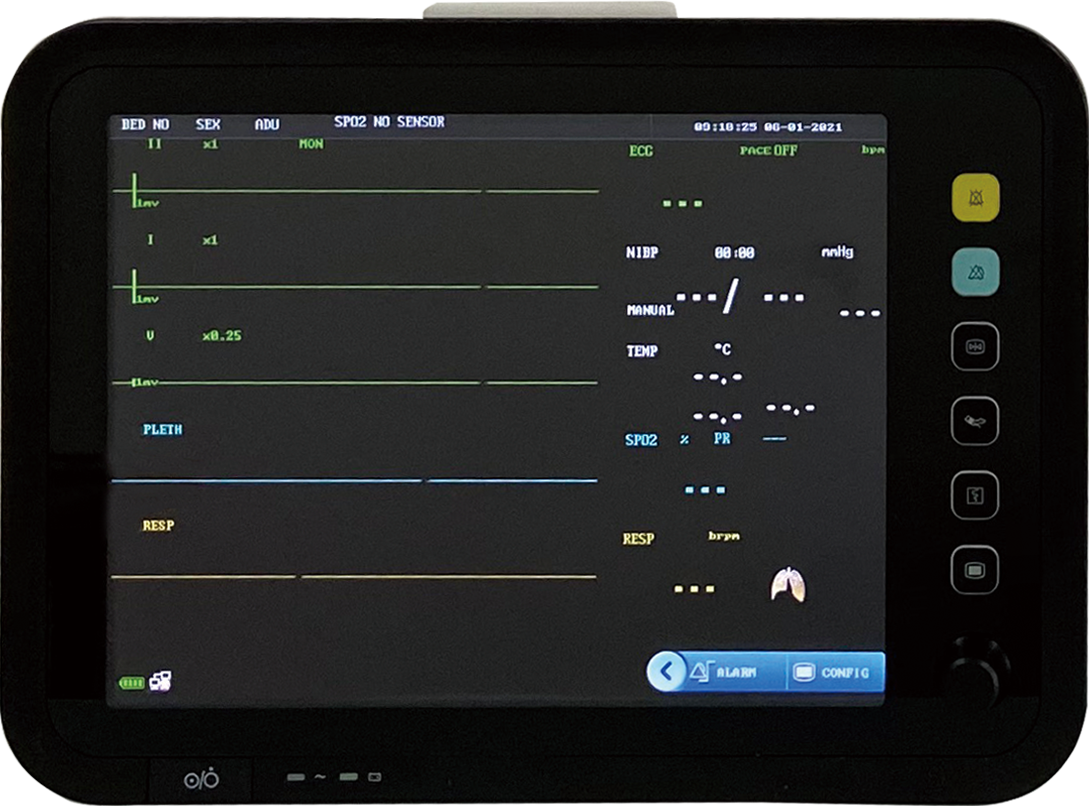

Patient Monitor (EW-P812B)
Tel：
0754-88481863Multi-parameter Patient Monitor
Monitor ECG, SpO2 ,NIBP,RESP,TEMP,PR and HR.
Quality Standards and Classification
CE,ISO13485
SFDA: Class Ⅱ b
Anti-electroshock degree:
Class Ⅰ equipment(internal power supply)
TEMP/SpO 2/NIBP: BF
ECG/Resp: CF
Application Range
Adult/Pediatric/Neonatal/Medicine/Surgery/Operating Room/ICU/CCU
Display
12.1"real color TFT screen
| Environment | |
| Operating environment | |
| Temperature | 0～40℃ |
| Humidity | 15%～80% |
| Pressure | 86.0kPa'106.0kPa |
| Transport and Storage environment | |
| Temperature | -20～55℃ |
| Humidity | 10%～90% |
| Pressure | 86.0 kPa～106.0kPa |
| Power Requirements | |
| AC | 100'240V,50Hz/60Hz |
| DC | Built-in rechargeable battery |
| Battery | 11.1V 24wh Li-ion battery |
| 2h operating after full charge | 5min operating after low battery alarm |
| Dimension and Weight | |
| Equipment | 340mm x 245mm ×134 mm(about);2.798kg(about) |
| Package | 380mm ×350 mm x 300mm; 4.598 kg(about) |
PAPER-CARTON
