LED Surgical Lamp RG (KS-5050)
Tel：
0754-88481863Removable, sterilizable handle can be used to
adjust the focus. Mannual focus mechanism
shows accurate focusing, excellent shadowless
and depth the operator intends for every position
| Title | KS-500 standard |
| External Lamphead Diameter | 500mm |
| Primary Voltage | 100-240V |
| Secondary Voltage | 24V |
| Illumination intensity Ec @1m distance | 20,000Lux-160,000Lux |
| Adjustabel light field size | 200-380mm |
| Color rendering index Ra | >85 |
| Color rendering index R9 | >85 |
| Remaining lighting with one tube (%) : | >99.9% |
| Remaining lighting with one mask (%) : | >40% |
| Remaining lighting with two masks (%) : | >50% |
| Remaining lighting with one tube and one mask (%) : | >40% |
| Remaining lighting with one tube and two masks (%) : | >50% |
| The total radiation intensity Ee | 511 W/m2 |
| The ratio of irradiance Ee to Ec | 3.2 mW/(m2?lx) |
| Number of LED modules | 48 |
| Average life time of LED | ≥50000h |
| Power consumption(W) | 85 |

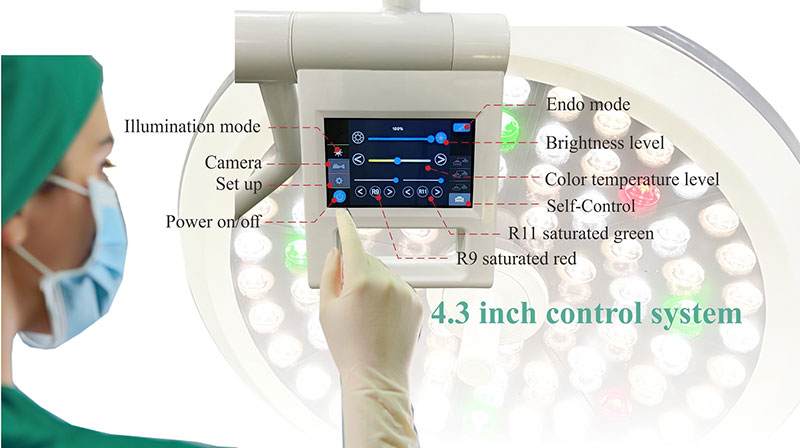

| Touchscreen control | 4.3 inch |
| ENDO Mode | YES |
| Mechanical Focalization | YES |
| Memory function | YES |
| Standards: CE marked, according to 93/42 Directive and UE Rule 2017/745 (MDR) EN 60601-1, EN60601-1-2 and EN 60601-1-2-41 | |
