Ultrasound System(EW-B10V)
Tel：
0754-88481863· The device adopts technologies such as microcomputer control and digital scanning converter (DSC), large dynamic broadband low-noise preamplifier, logarithmic compression, dynamic filtration, edge enhancement etc. to ensure legible, stable and high resolution images.
· Display modes: B, B+B, 4B, B+M, M Gray scales: 256
· Realize real time image display, frozen, zoom, store, up/down left/right reversal and Cine-loop. Multi-level scanning depth to choose, dynamic range, frame parameter adjust and focuses, focus location move. 16 body marks.
· Comment : date & time, name, sex, age, doctor, hospital, annotation, distance, circumference, area, PAL-D video out, link to video printer or video device. USB 2.0 for real-time picture uploading to PC
· Combined power supply mode of AC adapter and built-in Li-ion chargeable battery, the power saving mode to enable more lasting battery operation.
· Jet molding enclosure with hand-held structure makes it convenient for out diagnoses.
· Standard Configuration: Main unit + 6.5MHz Rectal Probe.

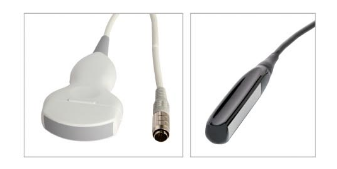

Options: CXA/50R/3.5MHz Convex Probe, C1-12/20R/5.0MHz Micro-convex Probe, L1-5/7.5MHz
Linear Probe.
allocation
Host (including a lithium-ion battery), 50R/3.5MHz convex array probe, adapter, user/technical manual, medical coupling agent, carrying case
| Type | EW-B10V | |
| Probe | 3.5MHz Convex Probe | |
| Scan depth(mm) | ≥140 | |
| Resolution(mm) | Lateral | ≤3( depth ≤80) ≤5(80＜ depth ≤130) |
| Axial | ≤1( depth ≤80) | |
| Blind area (mm) | ≤6 | |
| Geometric Position Precision(%) | Horizontal | ≤7.5 |
| Vertical | ≤5 | |
| Monitor Size | 6.4 inch | |
| Display modes | B,B+B,B+M,M,4B | |
| Scanning depth | 70mm-240mm | |
| Port | USB2.0; Video | |
