LED Operating Lamp RG C+M (KS-F0503)
Tel:
0754-88481863Tel:
0754-88481863Advanced surgical light technology for precision and efficiency
EASYWELL's state-of-the-art operating theatre lights, examination
lights and video systems offer excellent illumination wherever they are used.
Outstanding features of our surgical lights include intuitive handling and a
future-proof design. We eliminate any unnecessary time spent away from patients
by offering you a simple control system and an easy-to-use interface.
EASYWELL series surgical light will help you deliver exceptional performance and the best possible care.
LED light bulbs
Use Germany imported OSRAM medical grade white LED light bulbs, no ultraviolet and infrared spectrum,
neither heat norradiation.
The service life of LED shadowless lamp
The service life of LED shadowless lamp is long (50,000h), far longer than that of traditional tungsten halogen
lamp (1,500h), and it is over twenty times of the service life of energy saving lamp.
Energy saving
Energy saving: 30% reduction in energy consumption, impact resistance, high luminous efficiency. Shock
resistant. Zero mercury. No infrared light or UV emission.

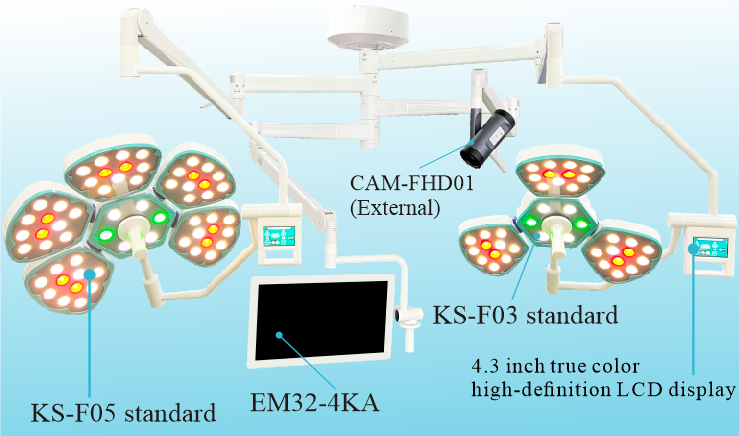

Title | KS-F05 standard | KS-F03 standard |
External Lamphead Diameter | 650mm | 650mm |
Primary Voltage | 100-240V | 100-240V |
Secondary Voltage | 24V | 24V |
Illumination intensity Ec @1m distance | 20,000Lux-130,000Lux | 20,000Lux-160,000Lux |
Adjustabel light field size | 200-380mm | 200-380mm |
Adjustable Color temperature | 3500-5000K | 3500-5000K |
The total radiation intensity Ee | 427 W/m2 | 284 W/m2 |
The ratio of irradiance Ee to Ec | 3.2 mW/(m2·lx) | 3.3 mW/(m2·lx) |
Number of LED modules | 61 | 39 |
Average life time of LED | ≥50000h | ≥50000h |
Power consumption(W) | 35 | 25 |
ENDO Mode | YES | YES |
Mechanical Focalization | YES | YES |
Model of Camera | CAM-FHD01 |
Image sensor | 1/2.8 inch Exmor CMOS SONY |
Effective pixel | 2,380,000.00 Million pixel |
Resolution (video) | 1080P@60FPS |
Exposure control | Auto, manual, priority mode (shutter priority & aperture priority), brightness, EV compensation, slow AE |
Backlight compensation | yes |
Digital focus zoom | 12x (360x with optical zoom) |
Video output | HD-SDI |
